KNOWLED Full Color Flexible LED Mat
Watch Video
Popular search

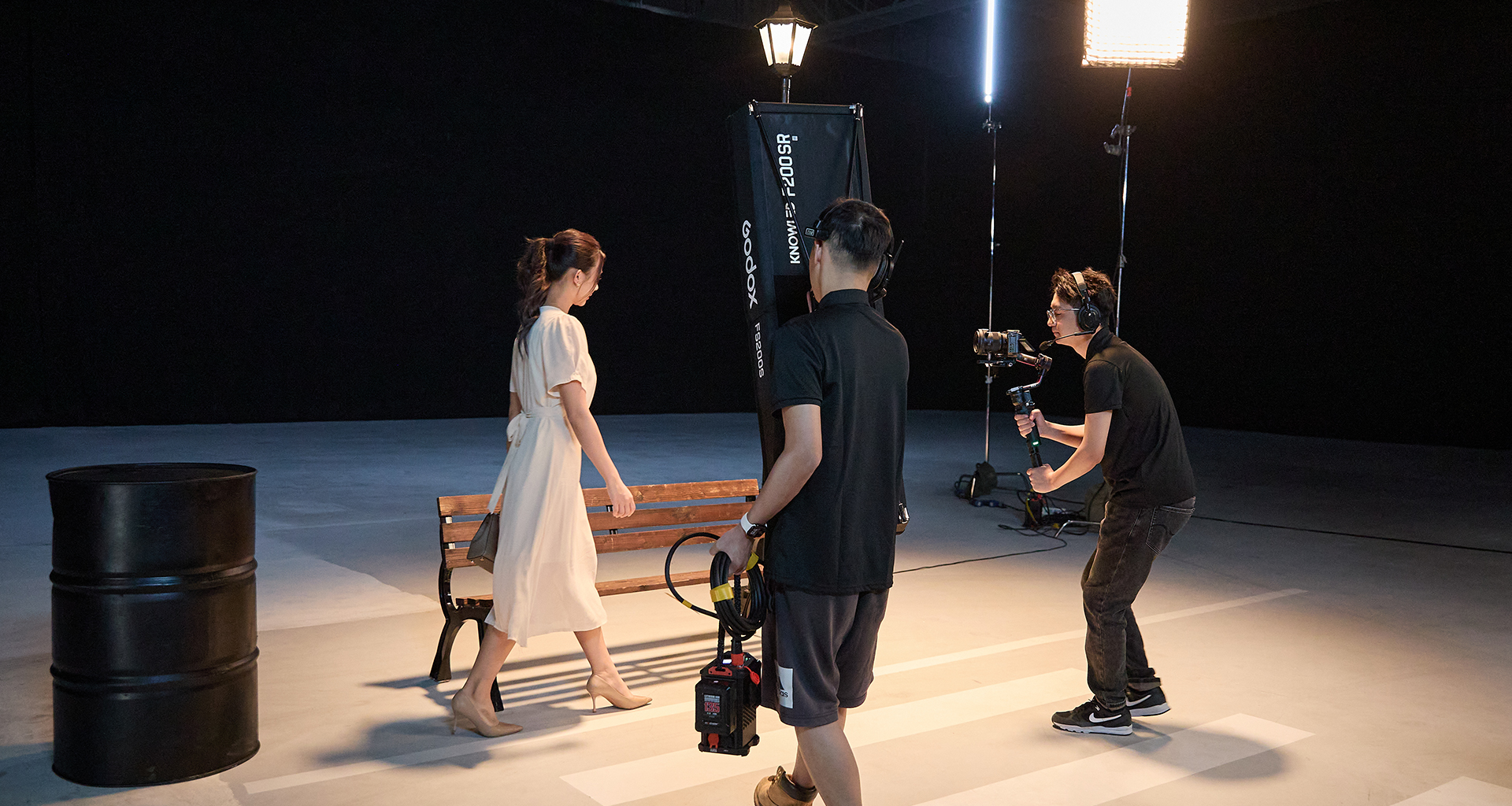

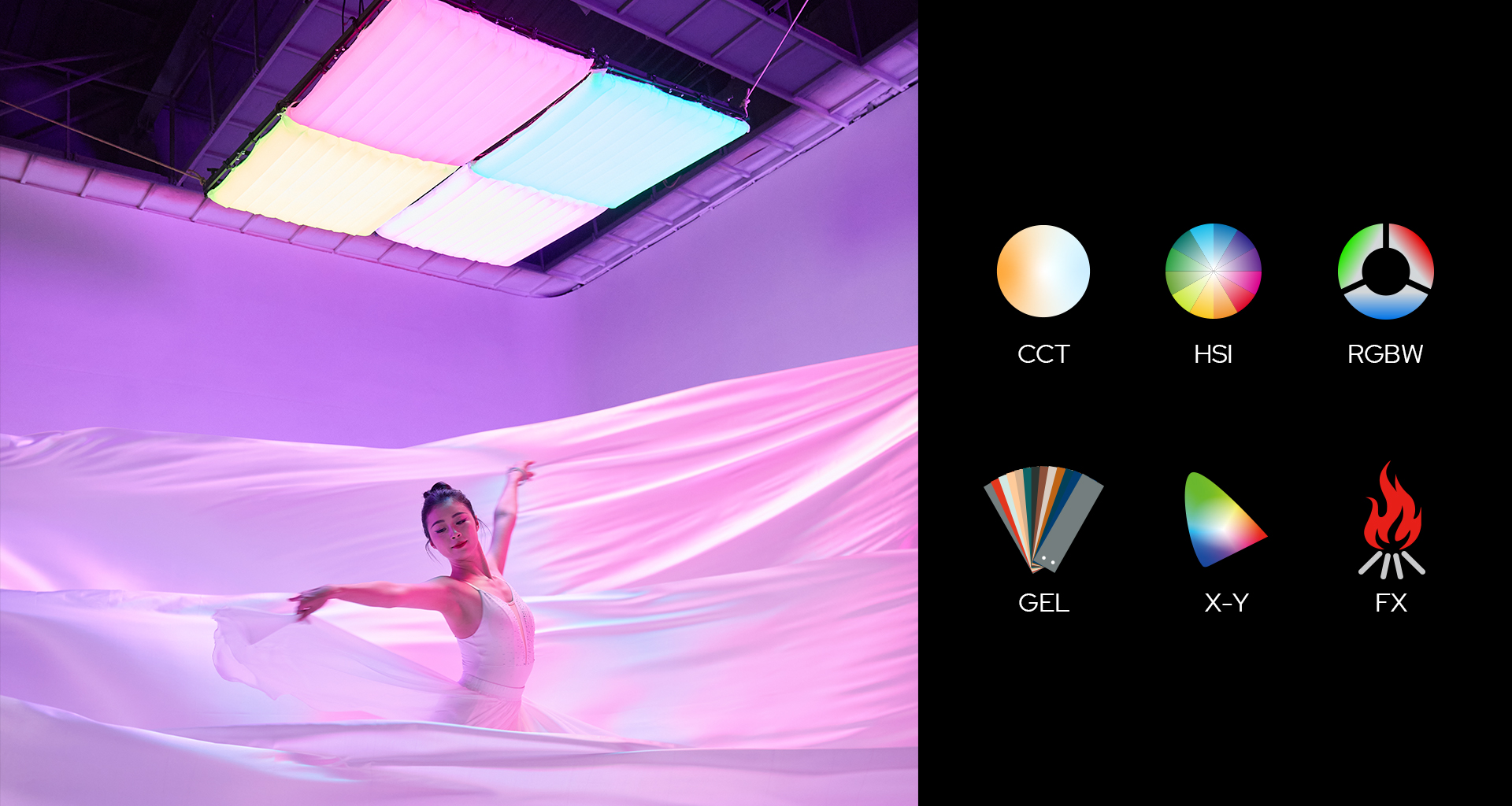

The KNOWLED full-color flexible mat series continues KNOWLED's legacy of high brightness and color saturation, delivering high-quality color light and intense brightness. With a wide CCT range of 1800K to 10,000K and adjustable G/M, it’s ideal for lighting people with stunning skin tones, or for dynamic scene coloring.
With a 30% power increase and a 20% reduction in weight, the F800R maintains the same size while offering enhanced performance. Featuring bend-resistant LEDs with protective design, it’s built for durability. The ultra-thin light body, combined with thoughtful features like eyelets and Velcro, makes it easy to mount and light even in tight spaces and challenging conditions.

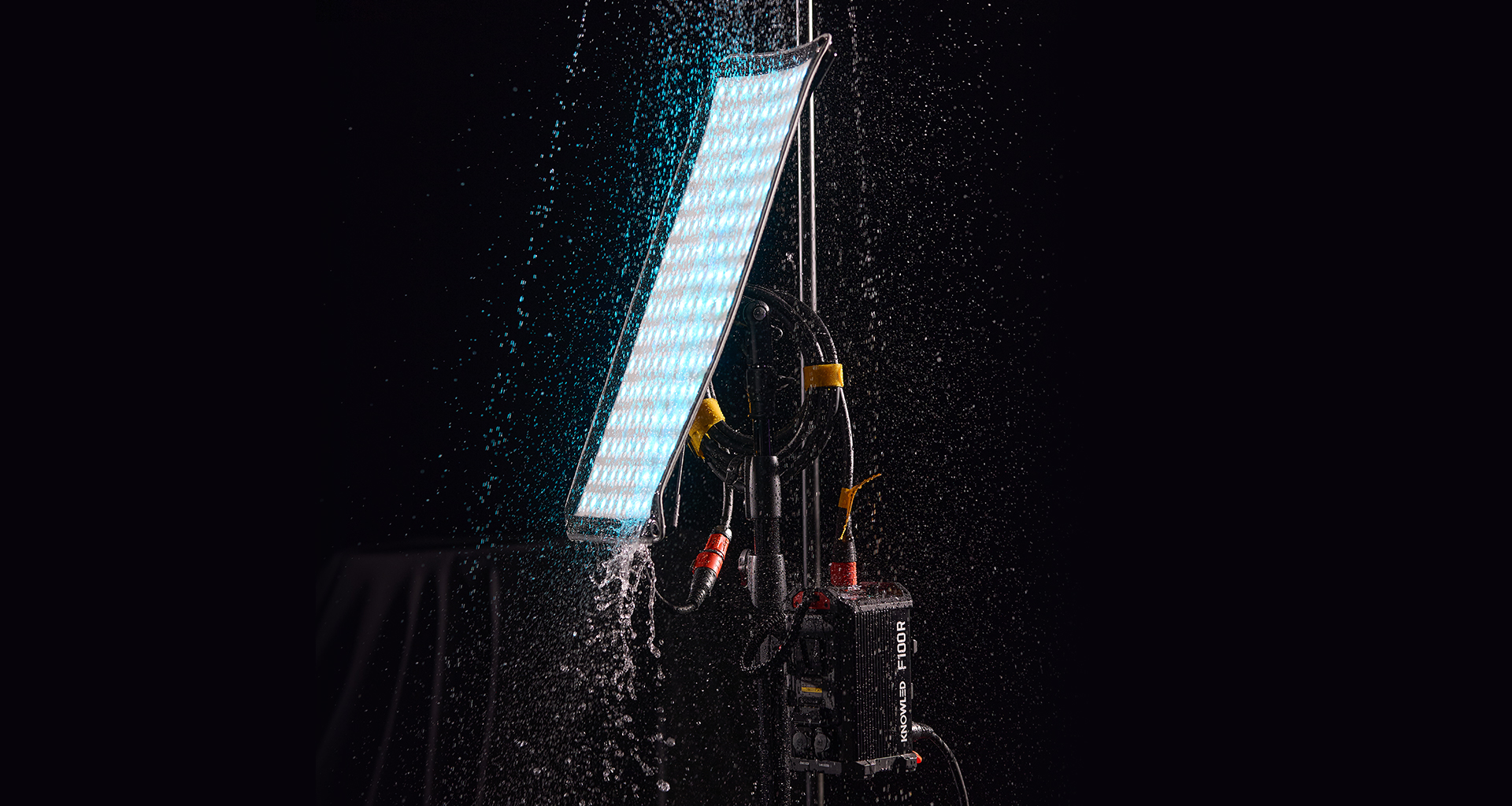

The KNOWLED full-color flexible mat is fully IP54-rated, offering complete protection from dust and water, from the light head to the control box. It ensures reliable performance and consistent output, even in challenging environments like rain or outdoor conditions.

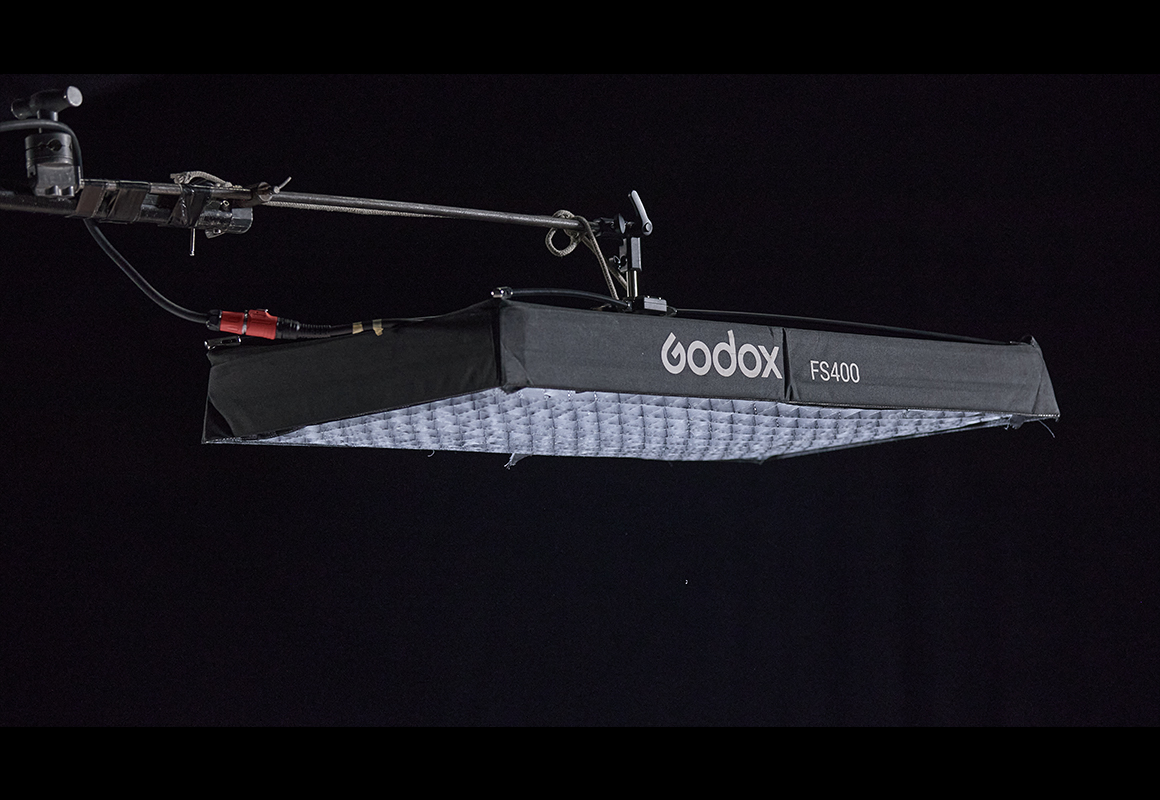

The newly upgraded metal bracket enhances strength and durability, while the quick-mount design boosts setup efficiency. The flat X-bracket design fits perfectly in tighter spaces. The integrated latch on the F800R’s back keeps the light level and prevents sagging, even during overhead rigging.
Flicker-free with a CRI of 96+ and TLCI of 97+, ensuring precise color accuracy and reliable performance for professional cinematography.

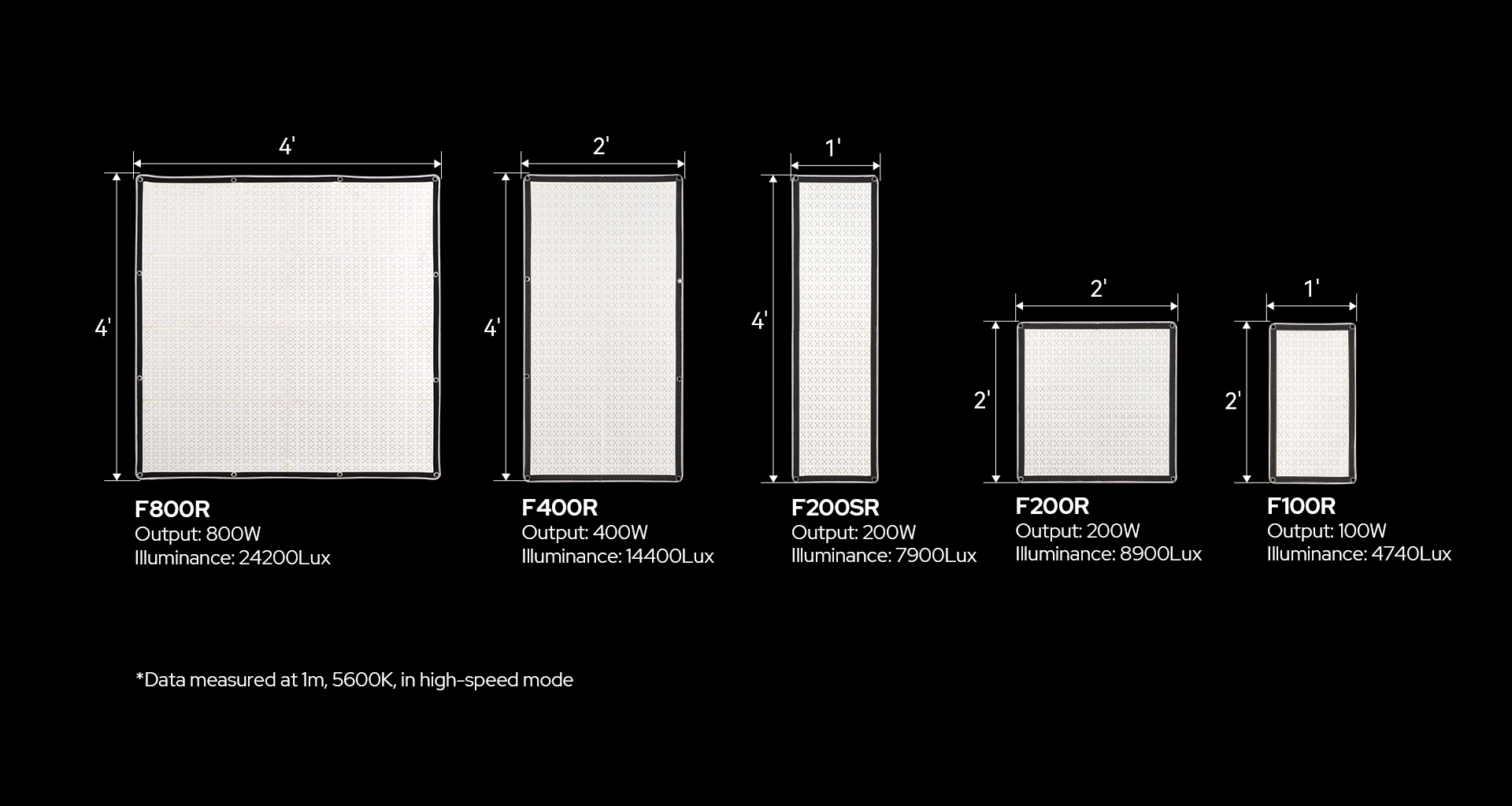

Available in five sizes, the KNOWLED full-color flexible mat fits industry-standard diffusion fabrics and truss systems. Each size can be linked together to create customized lighting setups for any space. All sizes fold down to 30cm×60cm for easy storage and transport.

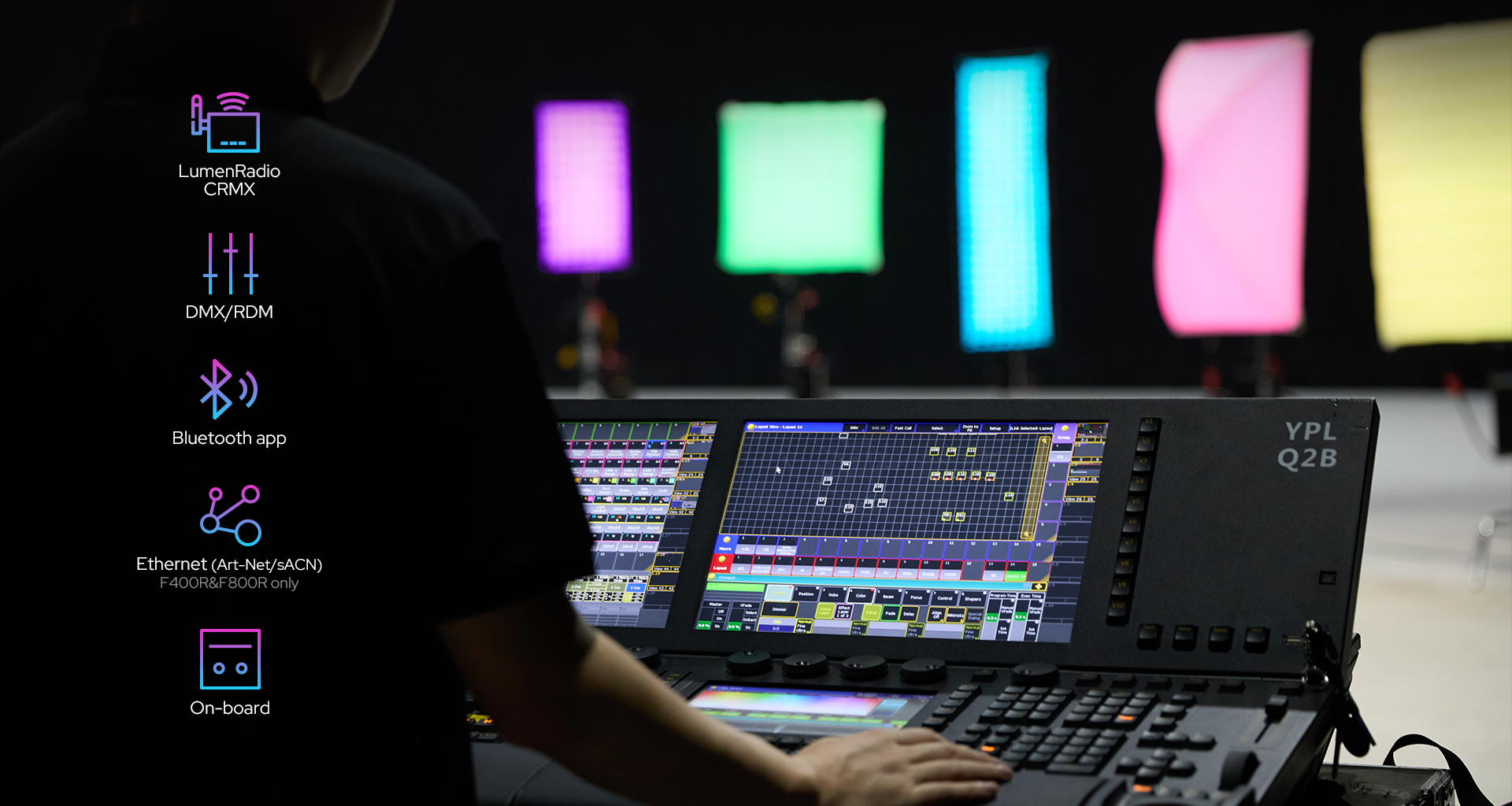

The full-color series features built-in LumenRadio module, ensuring efficient and stable wireless control via CRMX. The entire series also supports Bluetooth connectivity and on-board control. Additionally, the F400R and F800R models are compatible with Ethernet Art-Net&sACN protocols, further enhancing their capabilities for large-scale film and TV productions.
The F100R, F200R, F200SR, F400R models support V-mount battery power, while the F800R operates on 48V DC, making them ideal for mobile lighting setups or outdoor shoots away from power sources. Various lengths of AC and DC cables are available for added convenience (sold separately).

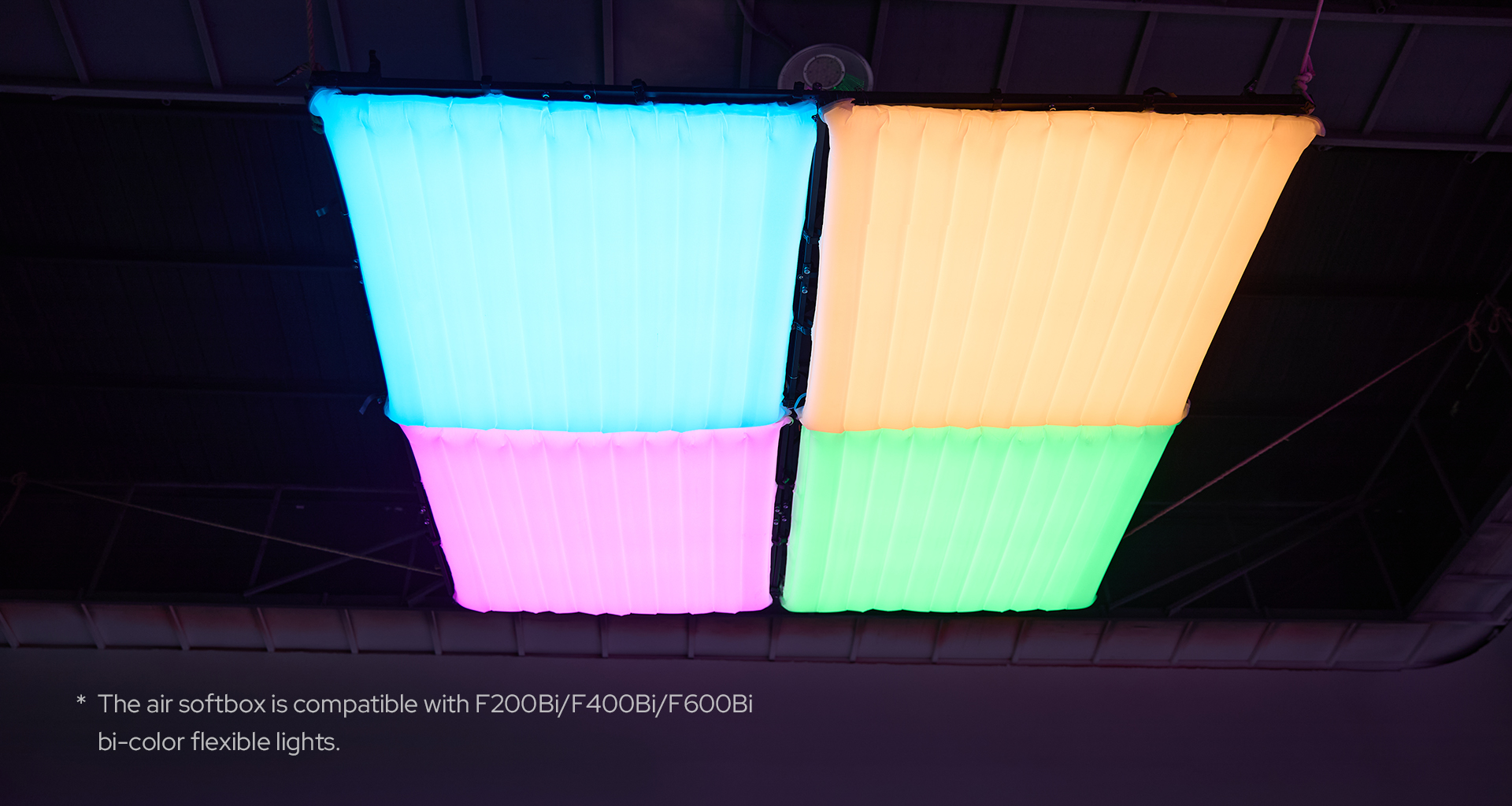

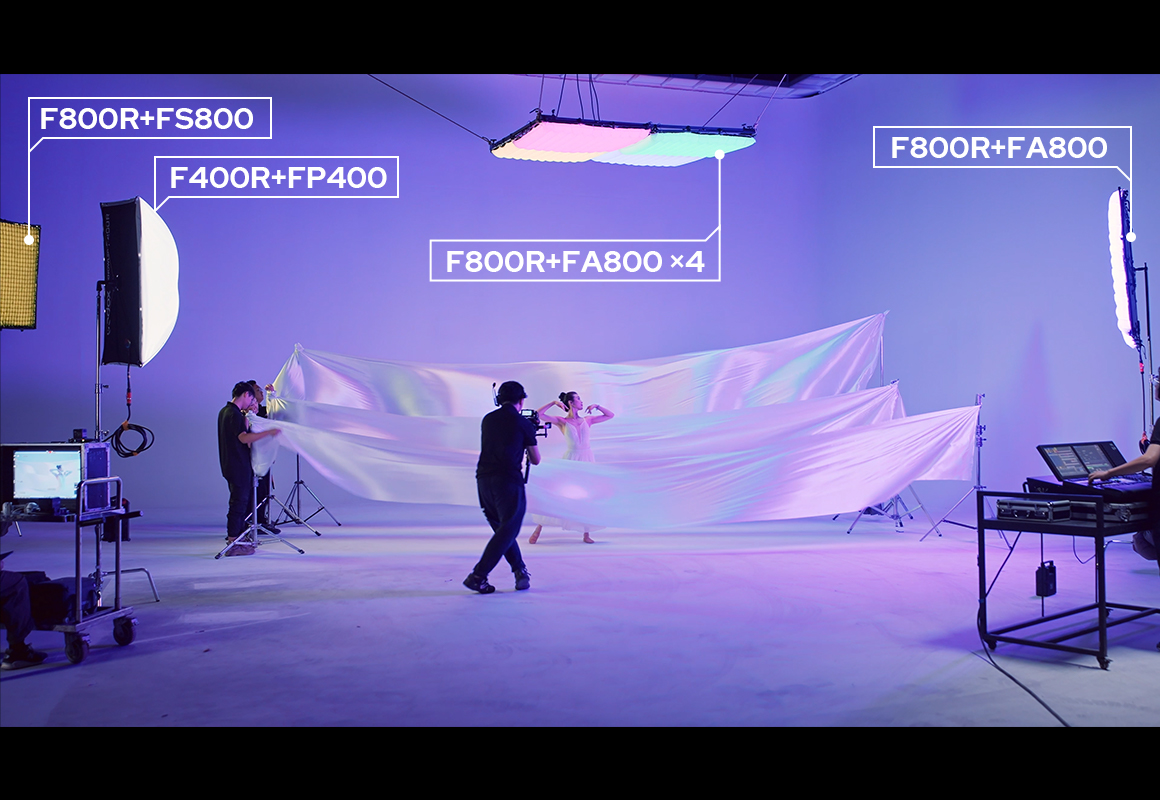

A new custom-sized inflatable air softbox is available for each size, complete with a skirt and grid. The curved design softens light for more even distribution. Easily detachable and quick to inflate or deflate, it provides flexible and efficient light shaping for any setup.

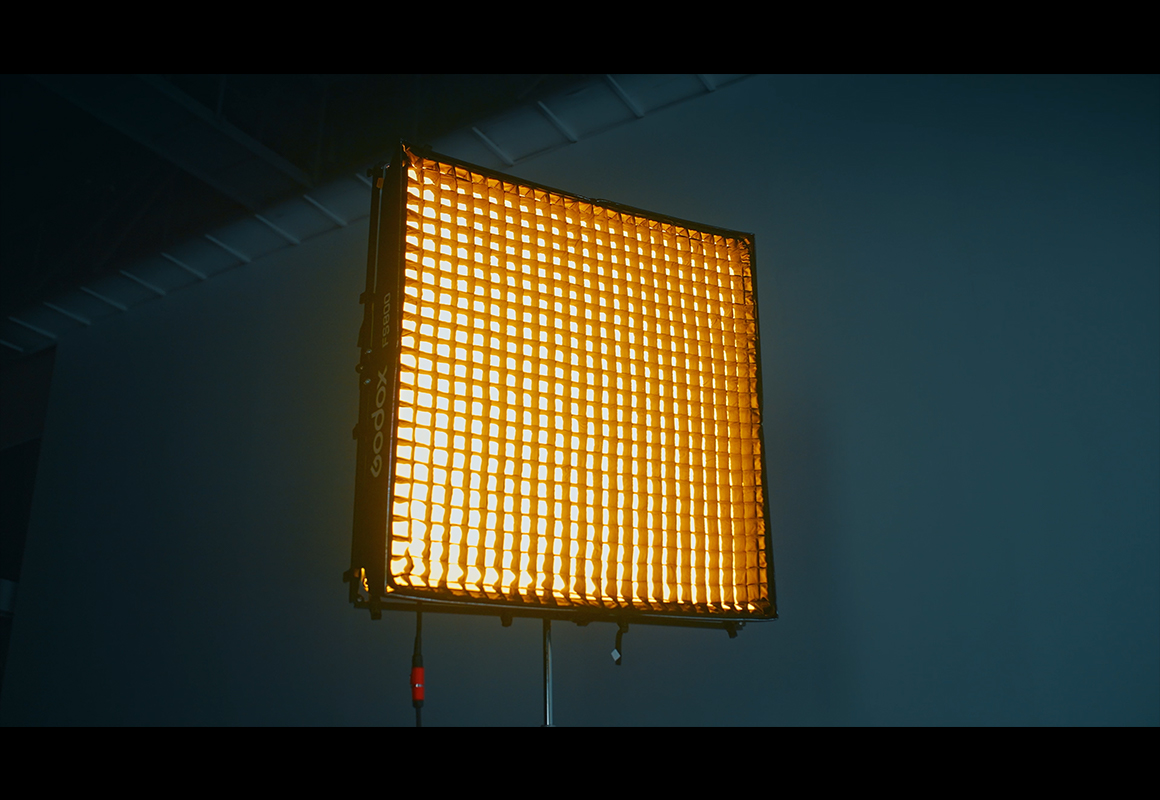

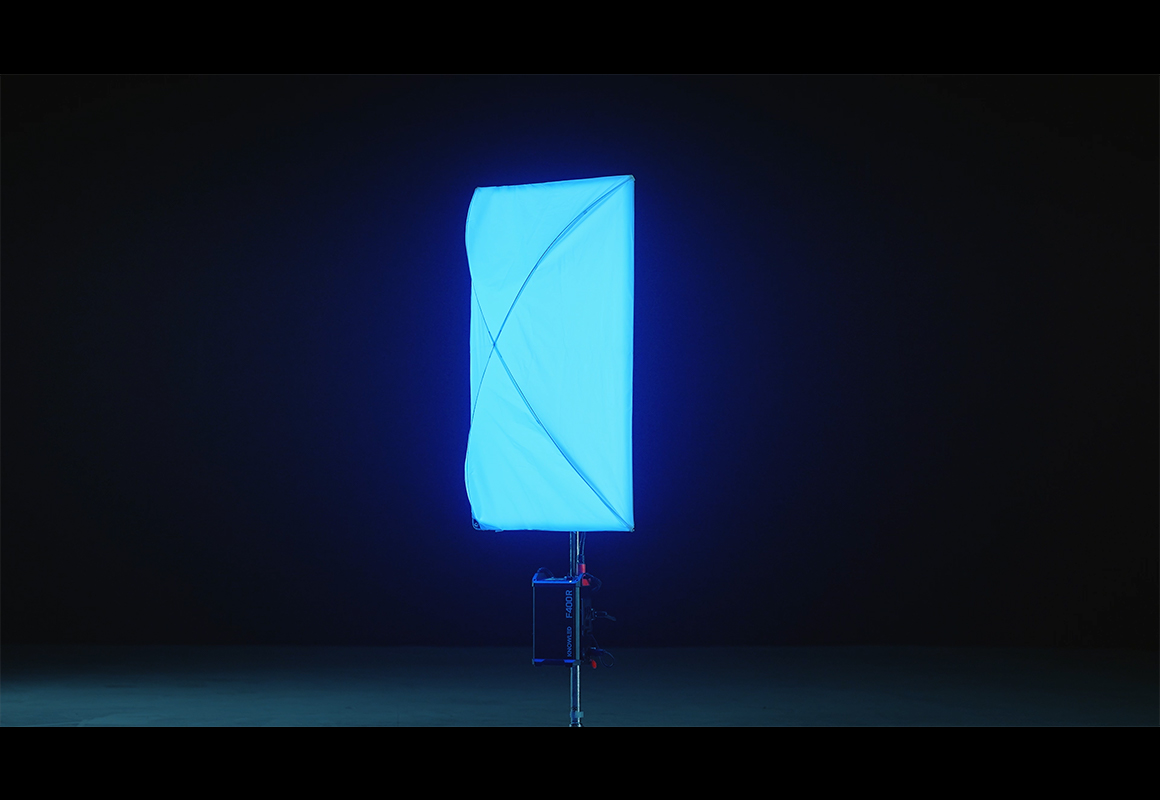

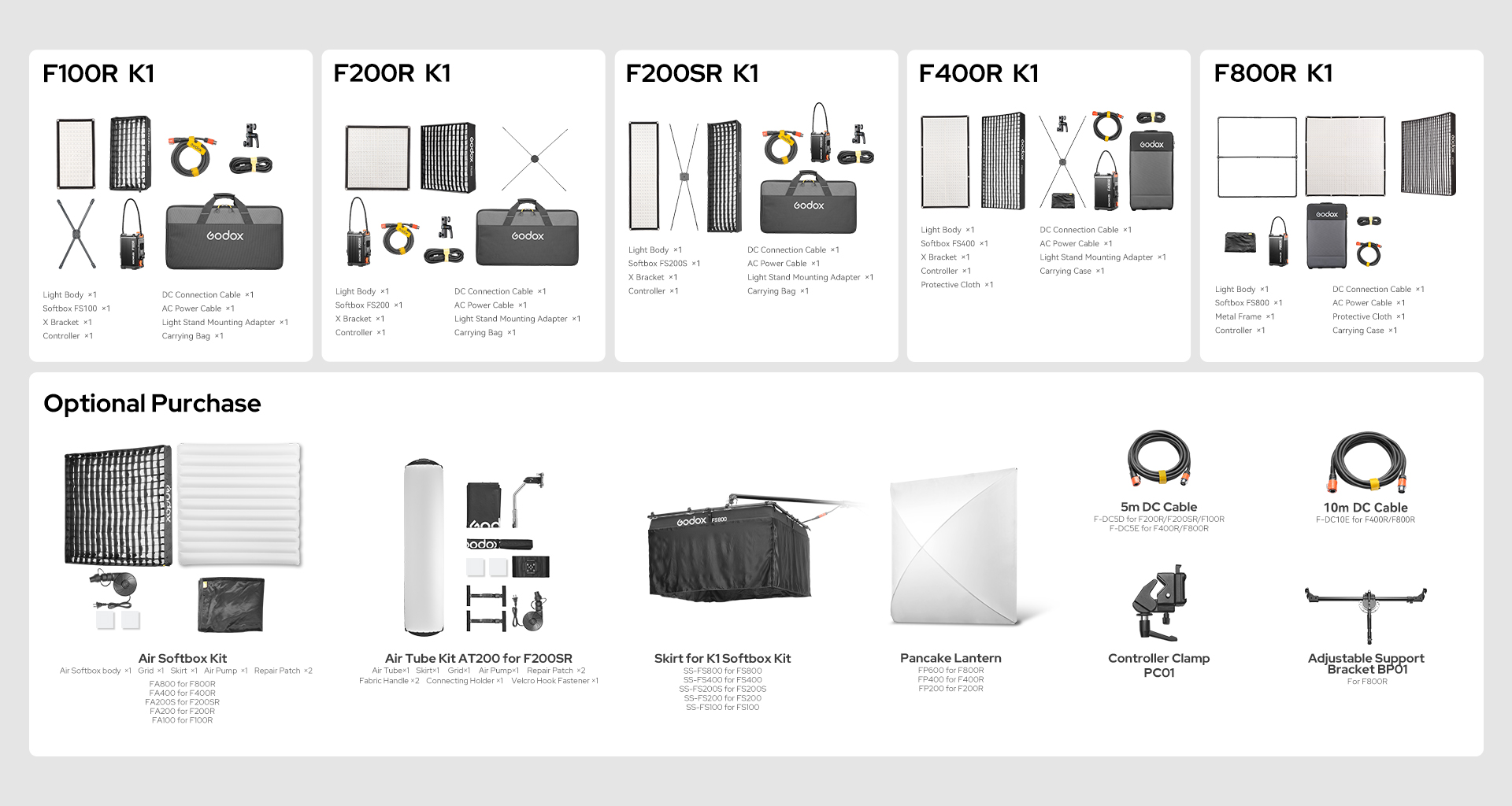

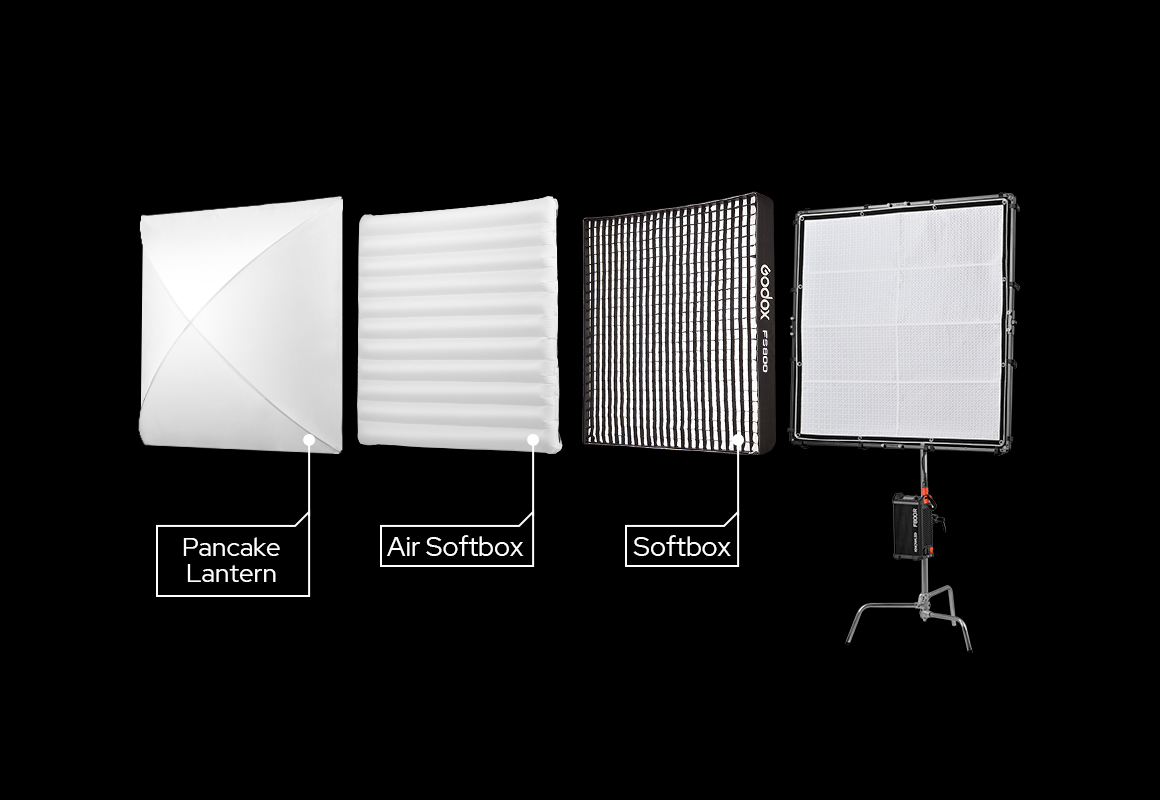

The full-color series now includes an upgraded softbox with a grid, featuring a deeper and durable design for superior light quality and control, and can be quickly mounted with Velcro. Additional accessories, including air softbox and pancake softbox, are available to meet the lighting needs of any scene.
The KNOWLED full-color flexible mats are engineered to deliver exceptional color consistency with no visible color shifts, whether used in large panel arrays or alongside other KNOWLED fixtures on set. This is made possible by KNOWLED’s advanced color management and precise calibration system, offering reliable performance for professional productions.
| Model | F100R | F200R | F200SR |
| Power Supply | 100V-240V~50/60Hz | ||
| Input Power | 130W | 250W | 250W |
| CCT | 1800K-10000K | ||
| G/M Adjust | -100%~100% | ||
| Brightness Range | 0%-100% | ||
| Dimming Curves | linear, S-curve, exponential, logarithmic | ||
| CRI | Average ≥ 96 | ||
| TLCI | Average ≥ 98 | ||
| Protection Grade of Light Body/ Controller | IP54 | ||
| Controlling Methods | DMX 512 Control, support RDM protocol / LumenRadio CRMX / Bluetooth app Control | ||
| Bluetooth Controlling Distance | 30m | ||
| USB-A Port | Firmware Upgrade/5V?1.5A Power Supply | ||
| Working Environment Temperature | -20℃~45℃ | ||
| Dimension≈ | Bare Light Body: 13.54" * 25.04" | Bare Light Body: 25.08" * 25.08" | Bare Light Body: 13.54" * 48.03" |
| Controller: 6.06" * 5.04" * 9.13" | Controller: 6.06" * 5.04" * 9.13" | Controller: 6.06" * 5.04" * 9.13" | |
| Netweight≈ | Bare Light Body:0.6kg | Bare Light Body:1kg | Bare Light Body:1.05kg |
| Controller:2.8kg | Controller:2.8kg | Controller:2.8kg | |
| Model | F400R | F800R |
| Power Supply | 100V-240V~50/60Hz | 100V-240V~50/60Hz |
| Controller Input Power | 460W | 900W (Max.) |
| CCT | 1800K-10000K | |
| G/M Adjust | -100%～100% | |
| Brightness Range | 0%-100% | |
| Dimming Curves | linear, S-curve, exponential, logarithmic | |
| CRI | Average ≥ 96 | |
| TLCI | Average ≥ 97 | |
| Protection Grade of Light Body/ Controller | IP54 | |
| Controlling Methods | DMX512 Control, support RDM protocol / LumenRadio CRMX / Ethernet (support Art-Net &sACN protocol) / Bluetooth app Control | |
| Bluetooth Controlling Distance | 30m | |
| USB-A Port | Firmware Upgrade/5V?1.5A Power Supply | |
| Working Environment Temperature | -20℃~45℃ | |
| Dimension≈ | Bare Light Body: 25.08" * 48.07" | Bare Light Body: 48.07" * 48.07" |
| Controller: 8.19" * 6.34" * 12.68" | Controller: 7.48" * 6.54" * 14.41" | |
| Netweight≈ | Bare Light Body:1.8kg | Bare Light Body:3kg |
| Controller:5.8kg | Controller:6.5kg | |
